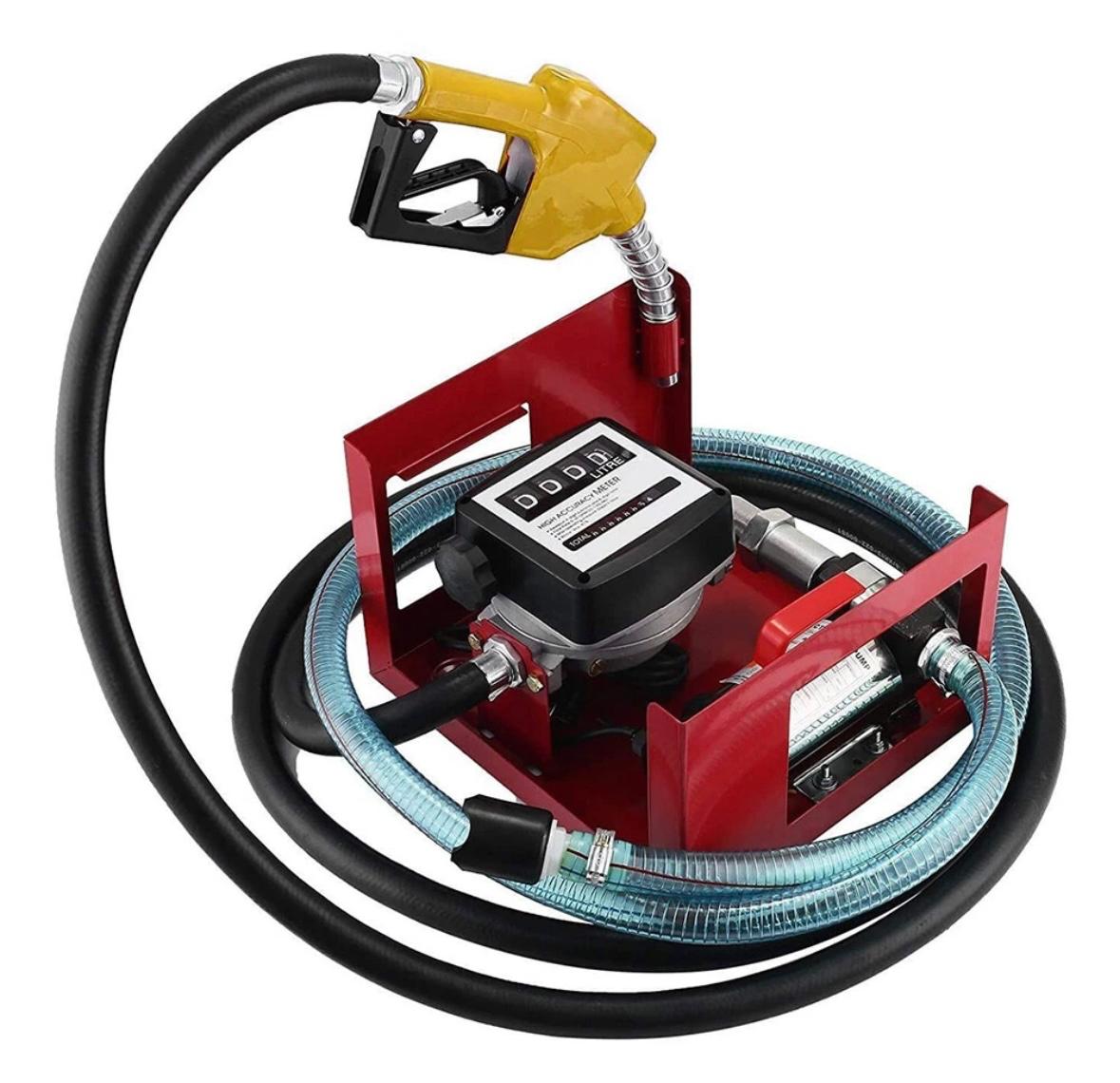

Customisable Lubricant and Diesel Transfer Pump Electric 60L/Min

We can tailor the pumps hose, lengths and specific parts such as pipework to be adjusted to meet your specifications and needs.

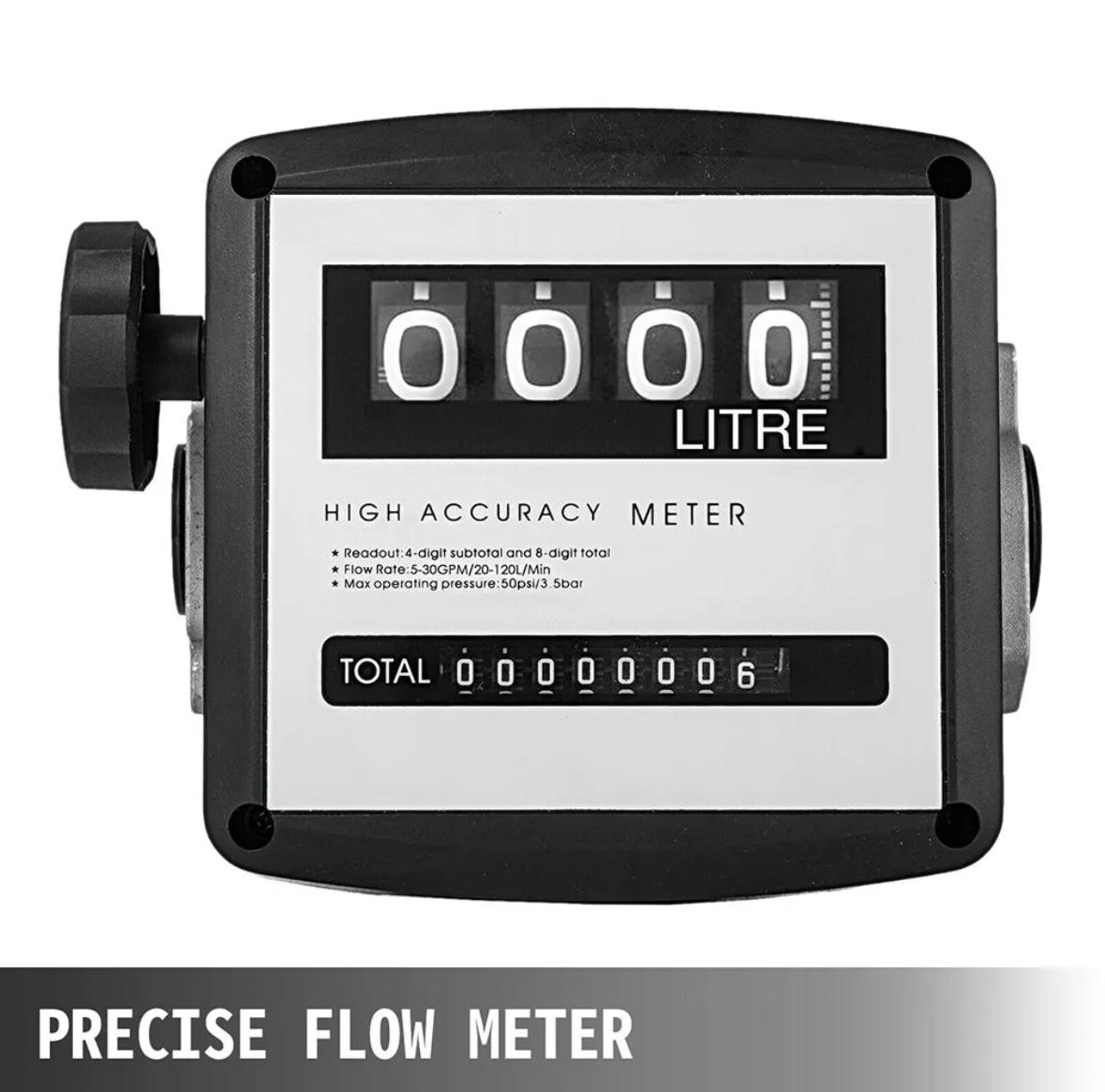

This pump which can achieve automatic self-priming, high power, high efficiency, but also accurate measurement, so you no longer worry about refueling. This self-priming  pump has a wide range of applications and can be used for automotive repair shops, automotive recycling or agricultural purposes, refuelling of machines, tractors or other vehicles, and cargo ships.The self-priming 220V pump with hoses and nozzle for immediate use.

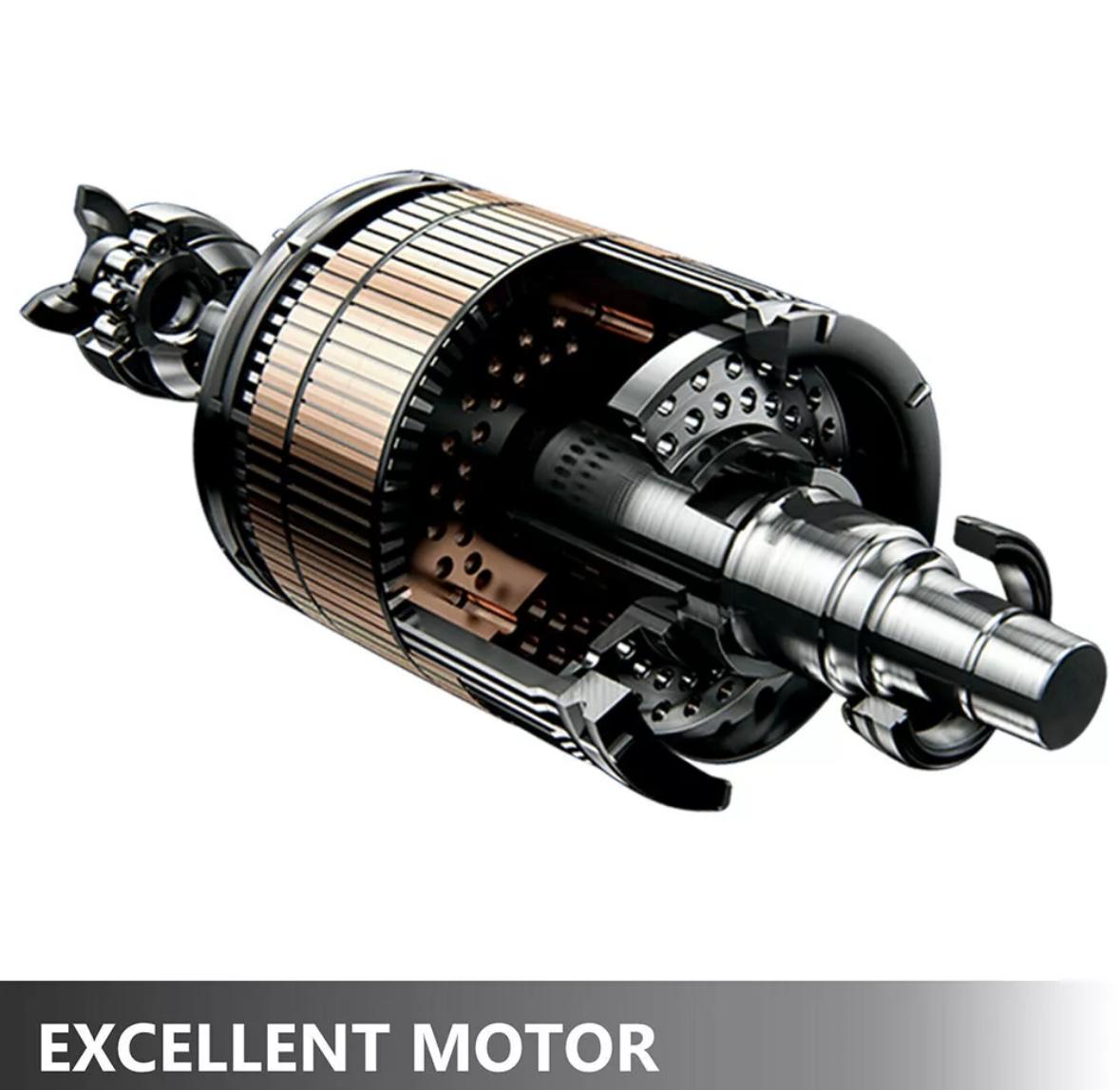

1.The motor power is 550 watts, which gives the pump a flow rate of max at a speed of 2800 rpm. 3600L/ h.60L/min

2.The diesel pump and fuel oil pump is suitable for pumping diesel oil, biodiesel and fuel oil from tanks or barrels. Use the diesel pump to refuel machines, tractors or other vehicles or to pump diesel fuels or oils.

3.The self-priming diesel pump or fuel oil pump is ideal for use in car workshops, car recycling or agriculture. It is compact, handy and powerful.

4.Do not use the diesel pump and fuel oil pump for pumping water, gasoline or flammable, volatile substances!

Designed for diesel engines of passenger vehicles by FORD, VOLVO and GM,
where SAE 5W-30 oil is recommended, which complies with the ACEA A5/B5
standard and meets FORD WSS-M2C913-D specification, as well as for petrol
and diesel engines of these brands where previous specifications 913-C, 913-
B and 913-A oils are recommended.

The oil is not suitable for use in heavy trucks and similar vehicles!

Specification：

Power (x/hp) / Speed (rpm): 2800 rpm

Length(hose): 2m/4m

PVC inlet hose: 2 m

Rubber outlet hose: 4 m

Max lift:7m

Product Type: Pump Type Diesel Pump

Power consumption: 550 W

Input Voltage: 220V~50Hz

Hose connection Ø / inch: 25 mm (1 inch)

max. Flow rate: 60L/min

Head: 10-15 m

Maximum Pressure: 0.29MPa, 3Bar, 42PSI

Pump distance: ≈ 30M

Protection class: IP55

Protection class / Insulation class: IP X4

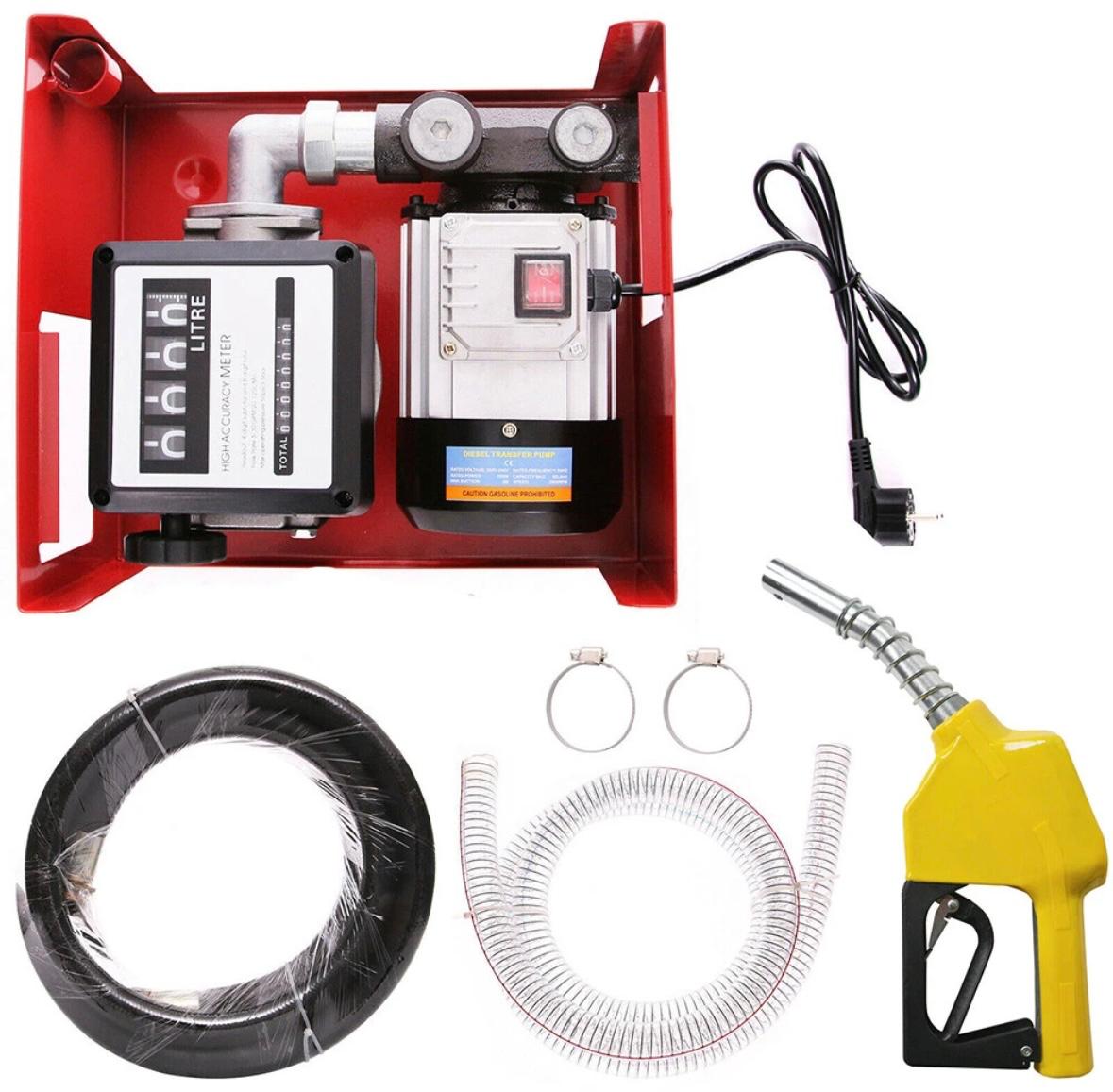

Package Included:

1x pump

1x PVC inlet hose（2m）

1x rubber drain hose（4m）

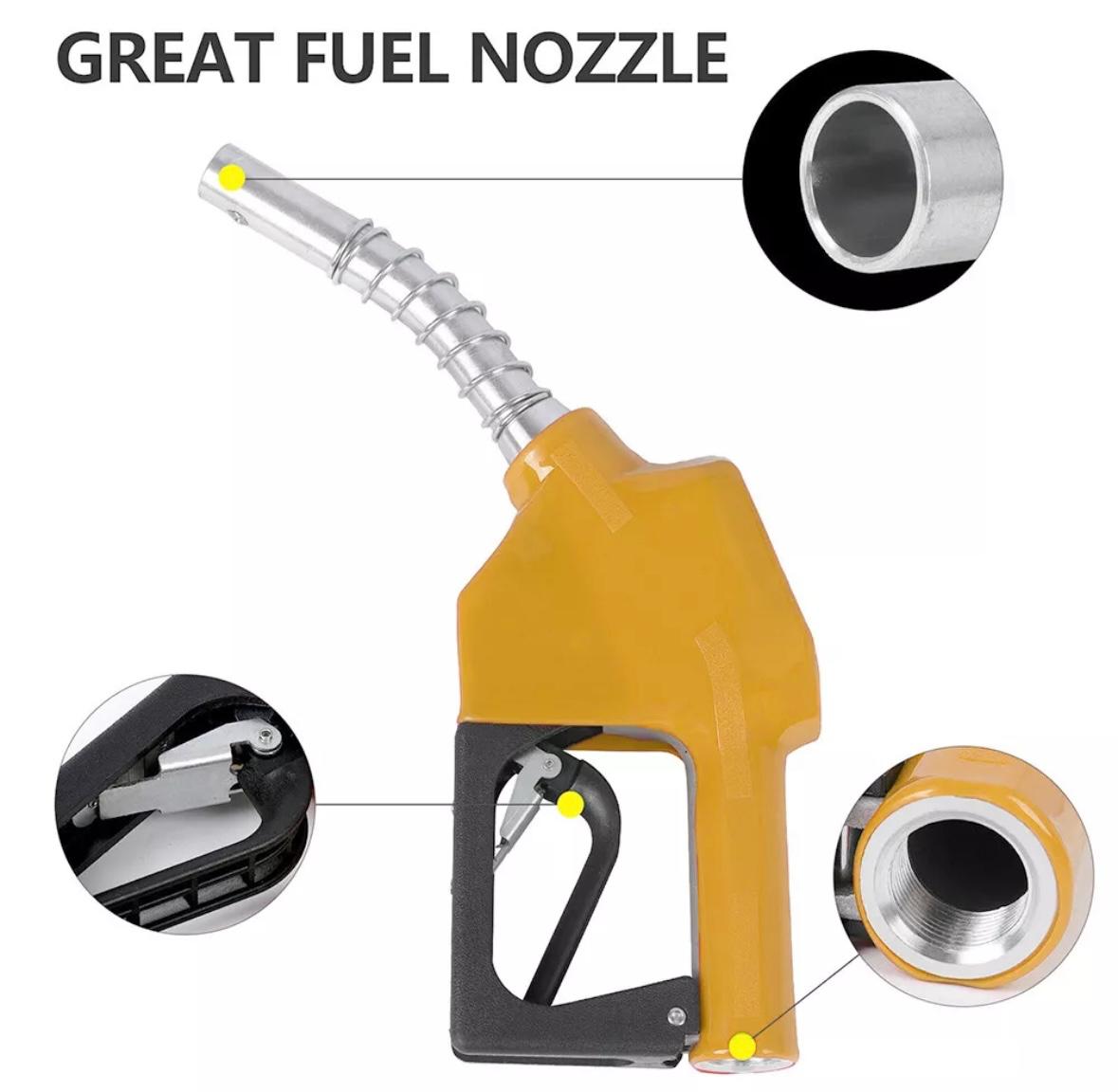

1x pump gun

2x Inlet Hose Fixing Circles

1x fuel filter

1x inlet hose fitting
